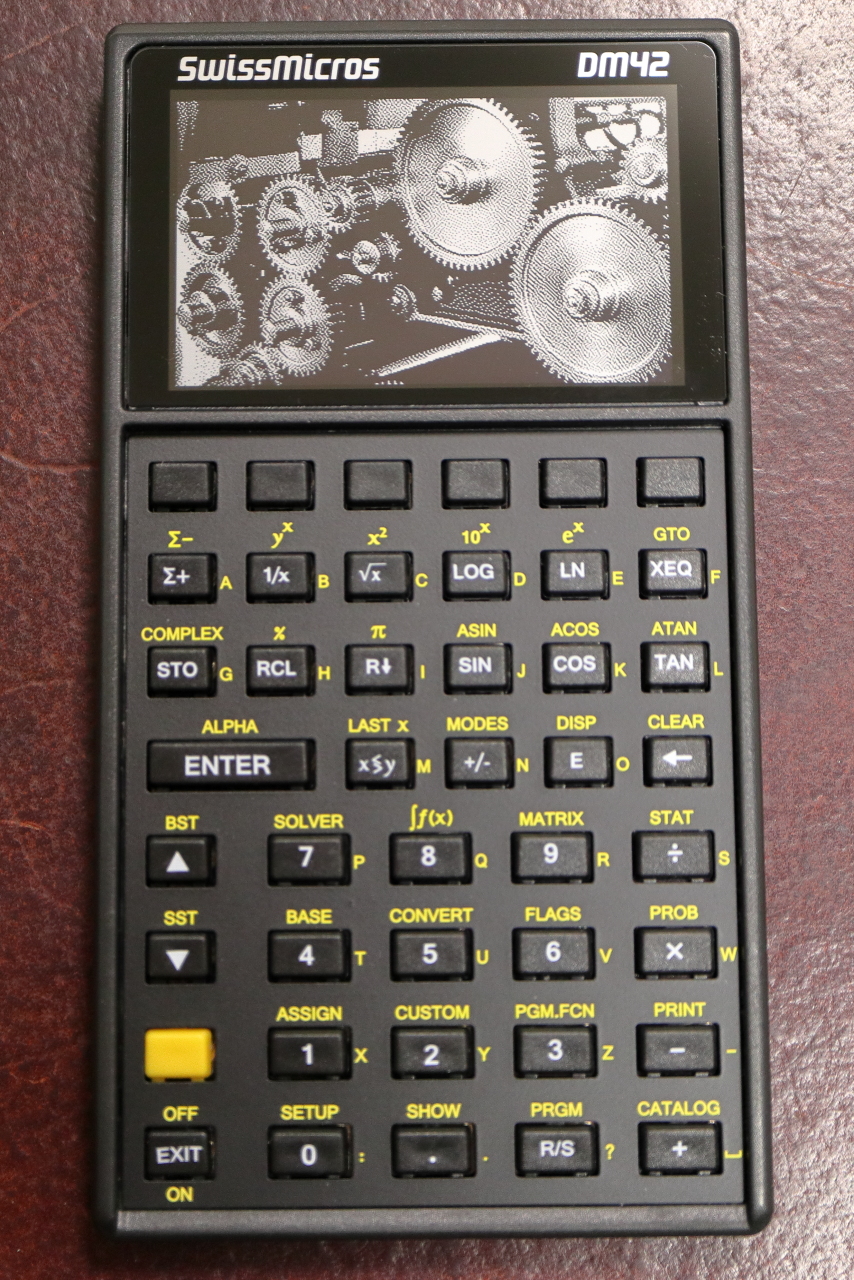

SwissMicros' DM42

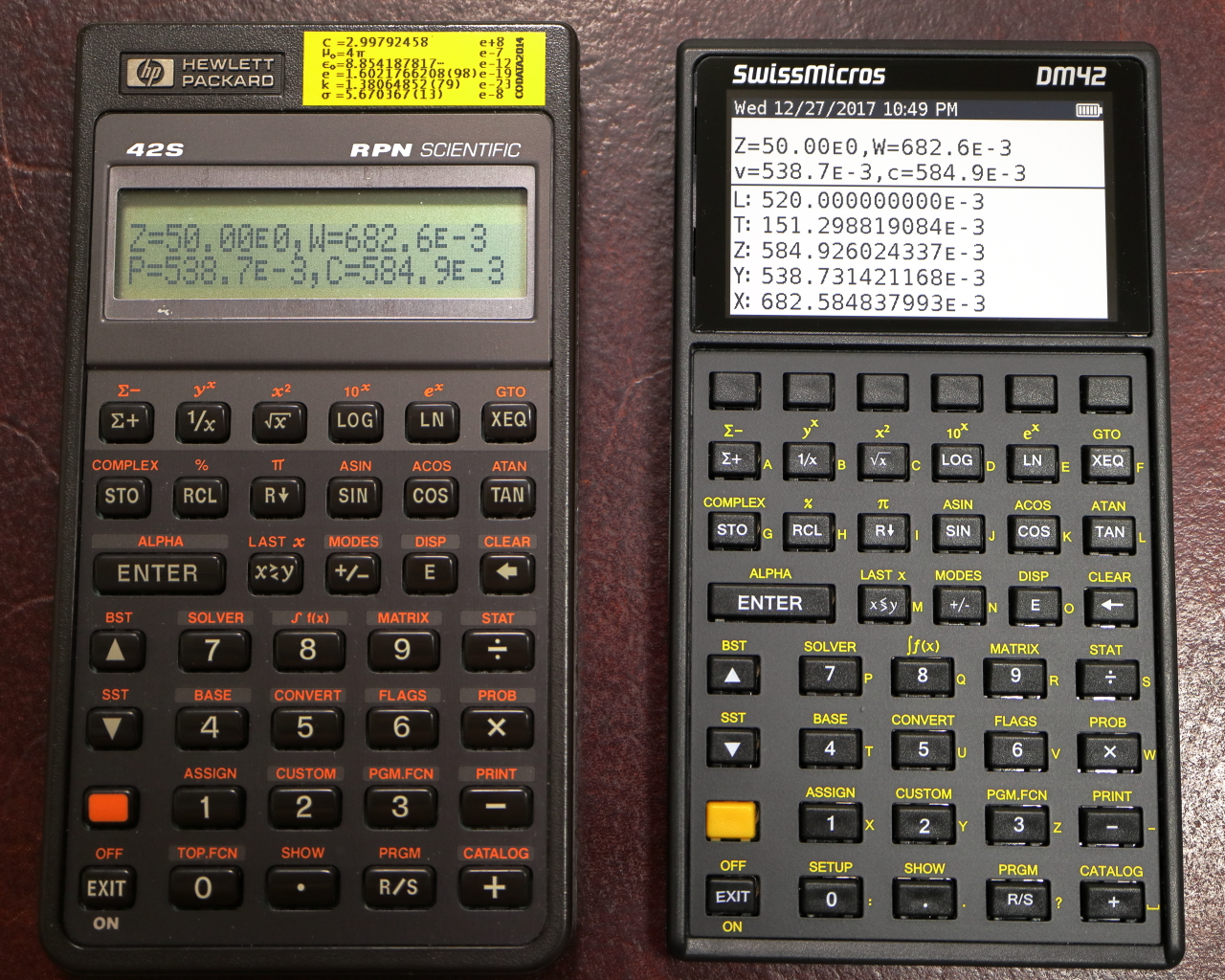

#### HP42S V.S. DM42

HP-42S V.S. DM42

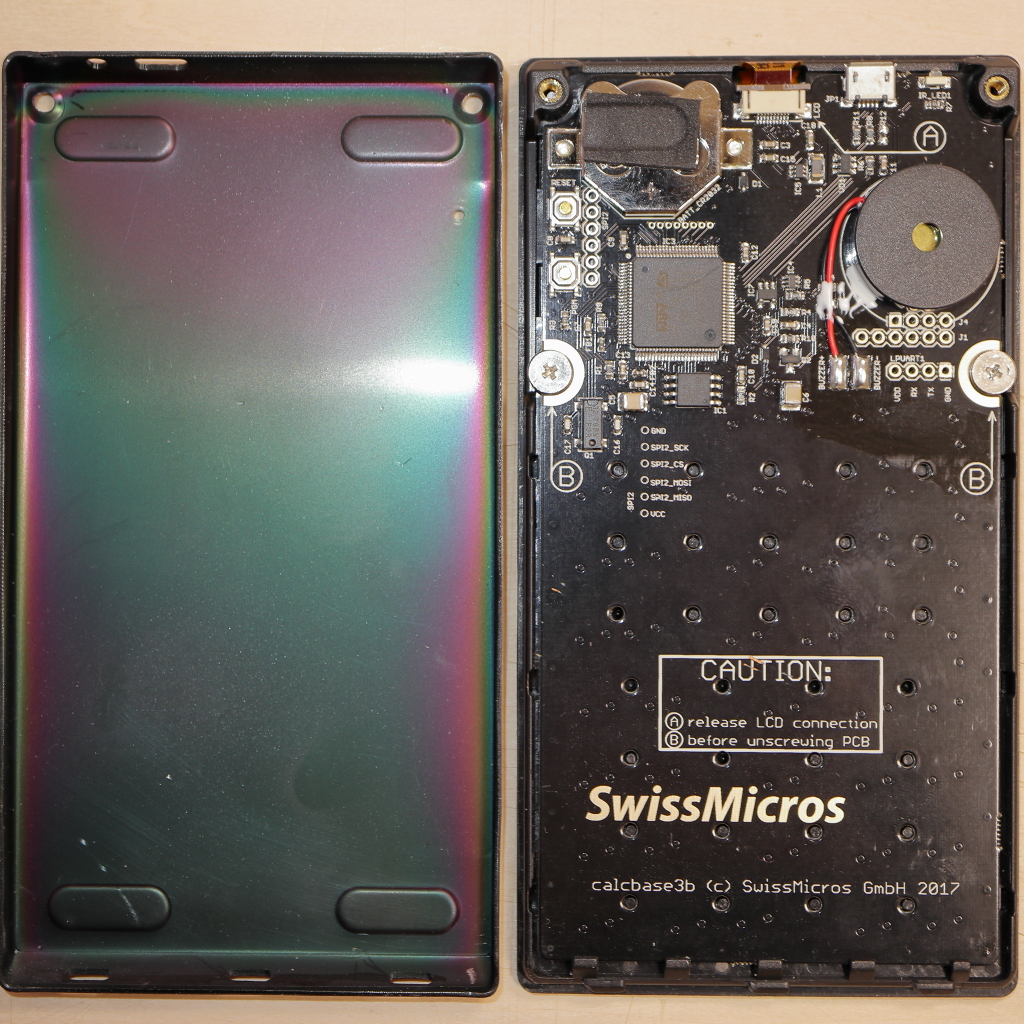

#### Internal view of a DM42

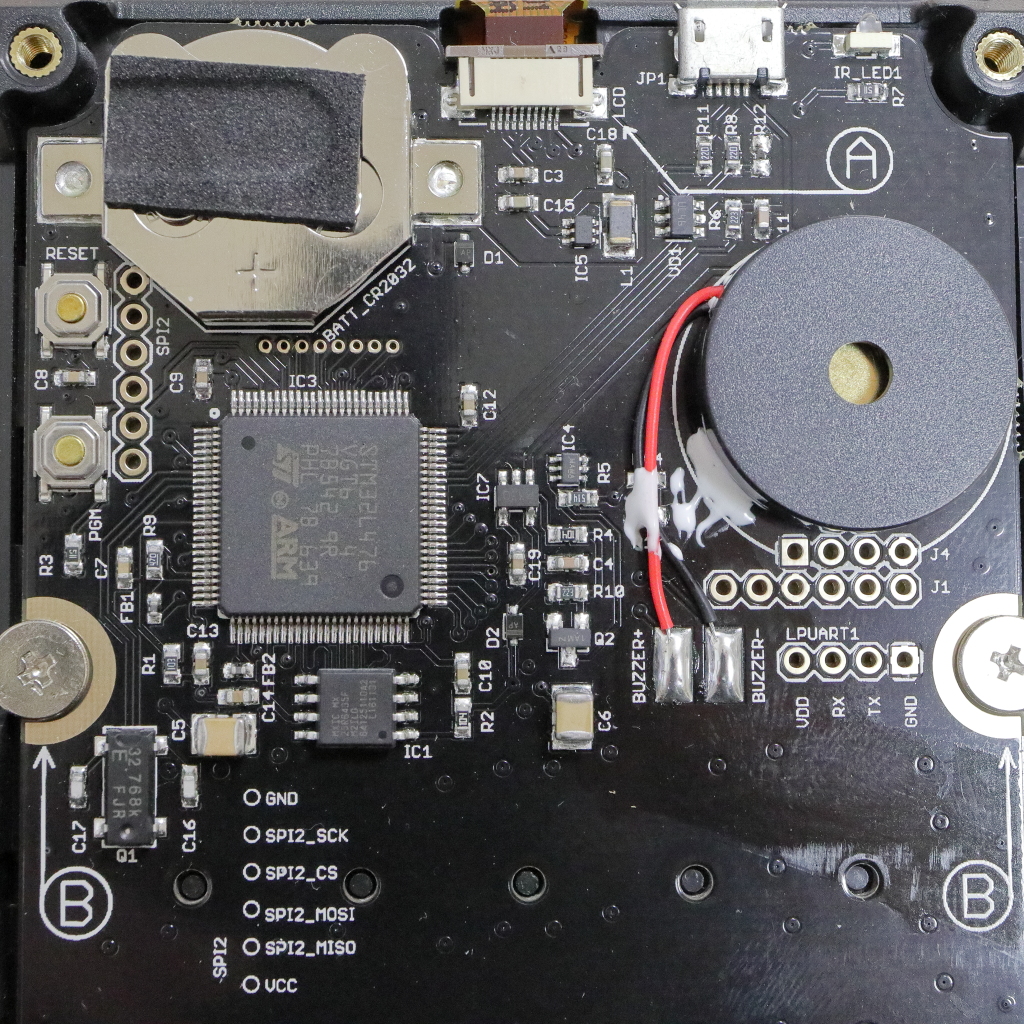

DM42 internals

Closeup view of the PCB

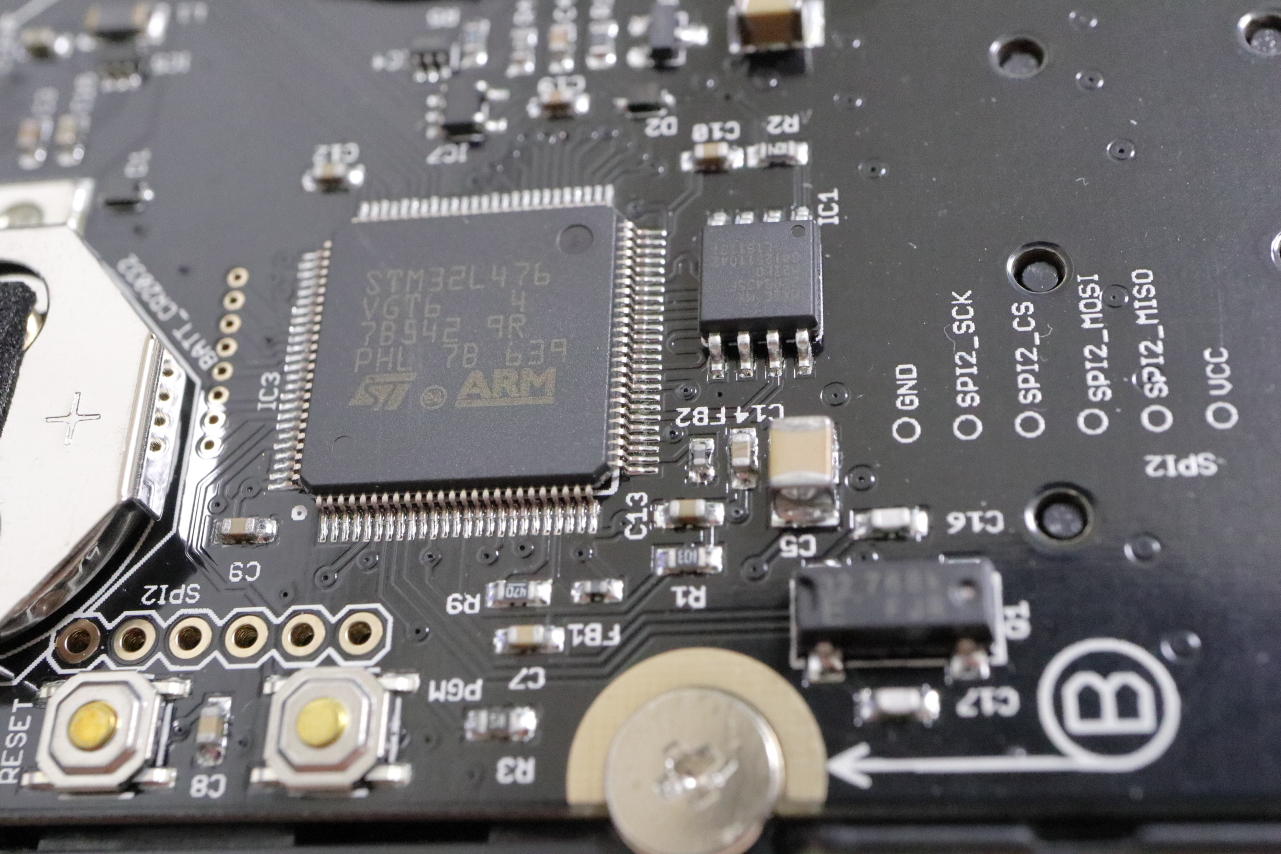

DM42 uses STM32L476VGT6

I_{standby} ≈ 4.8μA

#### OFFIMG example

Yokohama bay, JAPAN

"1. The Great Wave off Kanagawa", Katsushika Hokusai

"4. Under Mannen Bridge at Fukagawa", Katsushika Hokusai

"8. Sunset across the Ryogoku bridge from the bank of the Sumida River at Onmayagashi", Katsushika Hokusai

"12 Inume Pass", Katsushika Hokusai

"24. The lake of Hakone in Sagami Province", Katsushika Hokusai

"27. Tama River in Musashi Province", Katsushika Hokusai

"30. Shichiri beach in Sagami Province", Katsushika Hokusai

"31. Umezawa in Sagami Province", Katsushika Hokusai

"35. A View of Mount Fuji Across Lake Suwa", Katsushika Hokusai

"41. Dawn at Isawa in Kai Province", Katsushika Hokusai

SEE ALSO
HP-42s Memory upgrade and overclock

APPENDIX

Program library

- ABC2XY - Triangulation, tree known distance to the coordinates conversion
- AGM - Arithmetic-Geometric Mean
- AVR - Adjustable voltage regulator (such as LM317 or TL431) solver program
- BPFFL - Center frequency and Q of a Fliege band-pass-filter
- BPFMF - Gain coefficent, center frequency and Q of a multiple-feedback band-pass-filter
- E24 - Find nearest fraction(s) in the E24 numbers
- eW - exponent of Lambert
*W* function
- Factr - Factor a positive integer
- Frac - Fractional approximation
- LCM/GCD - LCM and GCD of two positive integers
- LCR - Resonant frequency of a LC resonator
- LPFMF - Gain coefficent, center frequency and Q of a multiple-feedback low-pass-filter
- L• - Inductanse of a straight conductor of circular section
- L- - Inductanse of a straight conductor of thin flat section
- NTC10K - NCP21XV103 NTC thermistor Temperature V.S. Resistance function to solve
- OST - SOLVE alternative, numerical solution of a lenear equation using Ostrowski's method
- RI - Rational interpolation
- Pt100 - Pt100-1997 Temperature V.S. Resistance function to solve
- μZw, μwZ - Synthesize/Analyze microstrip transmission line
- cbcpw - Analyze Conductor-backed Coplanar Wave guide / Complete elliptic integral of the first kind
*K*(*k*)
- Vn - Input refered voltage noise of an operational amplifier
- Z→S - Impedance Z to S
_{11} scattering parameter conversion
- ZdSL - Differential impedance of an edge coupled stripline solver program
