About via hole

Thermal resistance, resistance and inductance of a via hole

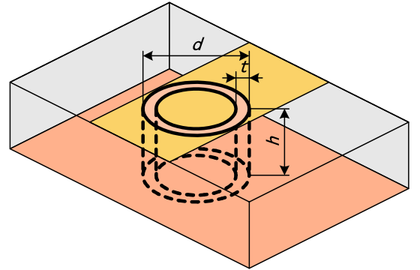

Fig.1 Via hole
Material Relative permitivity
μ_r Conductivity
σ[S/m] @295K Thermal conductivity
k [W/m/K] @293K

Silver 0.99998 6.21 × 10⁷ 418

Copper 0.999991 5.88 × 10⁷ 386

Gold 1.0 4.55 × 10⁷ 295

Aluminium 1.00002 3.65 × 10⁷ 204

Nickel 600 1.43 × 10⁷ 90

Via hole material:

μ_r : relative permeability

σ : conductance MS/m

k : thermal conductivity W/m/K

ε_r : relative permittivity

f : frequency MHz

h : via length mm

d : via diameter mm

t : plating thickness mm

θ : thermal resistance (plated via) K/W

R_dc : DC resistance (plated via) mΩ

δ : skin depth mm

R_ac : AC resistance (filled via) mΩ

L_via : inductance (filled via) nH

L_gnd : inductance (filled via to ground) nH

L_gnd : valid for heights less than 3% of wavelength.100μm ≤ height ≤ 631μm

Fig.2 Microstrip via hole to gound plane

Formulas used

$L_{via} = \frac{ \mu_0}{2 \pi } \biggl[ h \log\bigg( \frac{h + \sqrt{h^2 + r^2}}{r} \bigg) - \sqrt{h^2 + r^2} + \frac{h \mu_r}{4} + r \biggr]$

$L_{gnd}= \frac{ \mu_0}{2 \pi } \biggl[ h \log\bigg( \frac{h + \sqrt{h^2 + r^2}}{r} \bigg) + \frac{3}{2} \big(r - \sqrt{h^2 + r^2}\big) \biggr]$

where
h is length of the via. i.e.
r is radius of the via. i.e. d / 2
μ₀ is permitivity of free space.

Calculated inductance of via holes (example)

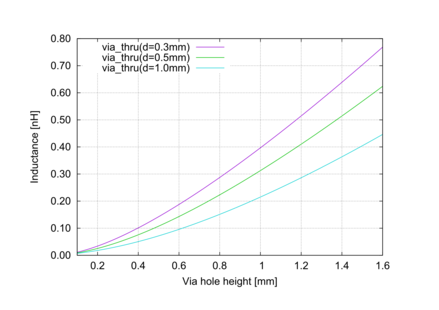

Fig.3 Inductance of via holes

Fig.4 Inductance of via holes to ground plane

REFERENCE

Brian C. Wadell, "Transmission line design handbook", Artech House, Boston, 1991.
F.W. Grover, "Inductance calculations", Van Nostrand, New York, 1946.
F.W. Grover, "Inductance Calculations", Dover Publications, 2004.
M. E. Goldfarb and R. A. Pucel, "Modeling Via Hole Grounds in Microstrip", IEEE Microwave and Guided Wave Letters, vol. 1, no. 6, pp. 135-137, June 1991.
