Calculate FIR rolloff filter coeficients
rolloff rate
0.25
0.33
0.50
0.66
0.75
1.00
distribution rate
0.25
0.33
0.50
0.66
1.00
over samplings
2nd
4th
8th
16th
32th
number of taps
7
15
31
63
127
257
output format
integer
double
scaling factor
Source code :
calcroll-2.7.2.tar.gz
(5.7KB), MD5 (calcroll-2.7.2.tar.gz) = 189ea9583391ac81c1556e4d745ed511

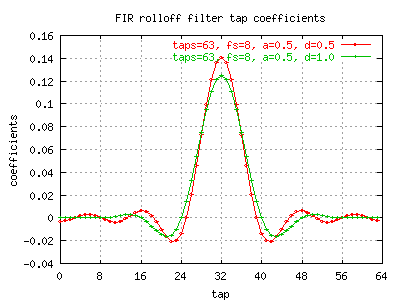

[fig.1 FIR Coefficients example of a roll filter]

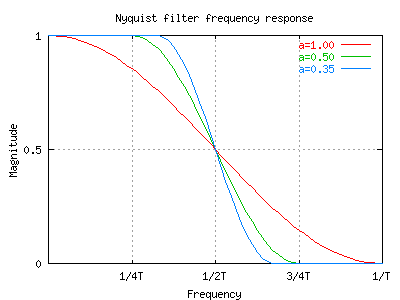

[fig.2 Frequency response examples of the Niquist filters]
[fig.3 Example of the 16QAM base-bnad signal]
[fig.4 The consteration example of the Π / 4 shift QPSK]
⚠️
Java アプリケーションの実行には
JAVA のインストール
と
例外サイトへの追加
が必要です。
