A High-Accuracy Extended-Precision arctangent Implementation Based on Padé Approximation

Balancing Numerical Accuracy and Instruction-Level Parallelism with Rational Approximation

2026-01-23

Takayuki HOSODA

Abstract

This page presents an implementation of the arc tangent function in ANSI C (C89) targeting x86 extended-precision (80-bit) arithmetic. While polynomial approximations are commonly used for elementary functions, this implementation adopts a Padé (rational) approximation to balance numerical accuracy with efficient utilization of modern superscalar processors. By evaluating the numerator and denominator independently, the core approximation is well suited to Instruction-Level Parallelism (ILP) and to fused multiply-add (FMA) pipelines available on contemporary CPUs. Combined with argument reduction based on arctangent identities, the implementation achieves high accuracy over the entire input domain, with a theoretical absolute error bounded by 6.5��10^-23 over the primary interval. The design emphasizes portability, predictability, and architectural awareness, making it suitable for high-quality libm implementations and performance-critical numerical software.

X86 Extended-Precision implementation (80-bit)

Listing 2: _atanl — arc tangent function in C89 (ANSI C)

/* _atanl -- arc tangent function in C89 (ANSI-C), X86 Extended-precision (80-bit)
 * _atanl Rev.1.21 (Jan. 22, 2026) (c) 2007-2026 Takayuki HOSODA
 * SPDX-License-Identifier: BSD-3-Clause
 */
#include <math.h>
#include <float.h>

#define Q_SQRT2  1.41421356237309504880168872421L
#define Q_PI_2   1.57079632679489661923132169164L
#define Q_PI_4   0.78539816339744830961566084582L
#ifndef LDBL_EPSILON
#define LDBL_EPSILON   1.0842021724855044340E-19L
#endif

long double _atanl(long double x);
/* _atanl(x) computes the principal value of the arc tangent of x. */
long double _atanl(long double x) {
    long double q, s, v, w;
    long double offset = 0;
    if (x == 0) return x;
    if (x >  (2 / LDBL_EPSILON)) return  Q_PI_2;
    if (x < -(2 / LDBL_EPSILON)) return -Q_PI_2;
    if ((v = fabs(x)) >= 1) {
        if (v > Q_SQRT2 + 1.0L) {
            offset = -Q_PI_2; v = 1 / v;
        } else {
            offset =  Q_PI_4; v = (v - 1) / (1 + v);
        }
    } else if (v > Q_SQRT2 - 1.0L) {
            offset = -Q_PI_4; v = (1 - v) / (1 + v);
    }  /* Argument reduction into four regions using atan identities */
    s = v * v;
    w =               29360128.L; q =            27923620725.L;
    w = w * s +    23930643317.L; q = q * s +   742768311285.L;
    w = w * s +   501165956970.L; q = q * s +  6684914801565.L;
    w = w * s +  3525222266475.L; q = q * s + 28472785265925.L;
    w = w * s + 11362119869100.L; q = q * s + 64710875604375.L;
    w = w * s + 18420316154955.L; q = q * s + 80639706522375.L;
    w = w * s + 14615037006570.L; q = q * s + 51967810869975.L;
    w = w * s +  4512611027925.L; q = q * s + 13537833083775.L;
    w = w * s;  /* (14,14) Pade approximation for atan(x) / x - 1 */
    v -= w / q * v;  /* atan(x) = x - (atan(x) / x - 1) * x */
    s = v + offset;  /* |err| < 1.43e-21, x in [0, sqrt(2) - 1] */
    return (offset * x >= 0) ? (offset != 0 || x >= 0) ? s : -v: -s;
}

Empirical Error Analysis (80-bit)

In an empirical evaluation conducted using GCC 7.5, the custom _atanl function was tested on 65536 (= 2¹⁶) uniformly spaced points per unit interval for x ∈ [0, 8] in long double-precision values. The relative error, computed as _atanl(x) / atan_ref(x) - 1 was found to be within ± 1.0842021724855044340E-19L, approximately the machine epsilon for IEEE 754 long double precision. Where atan_ref(x) denotes a rounded high-precision reference (≈ 40 digits), not a libm result.

For |x| > 8, argument reduction ensures that approximation errors rapidly diminish.

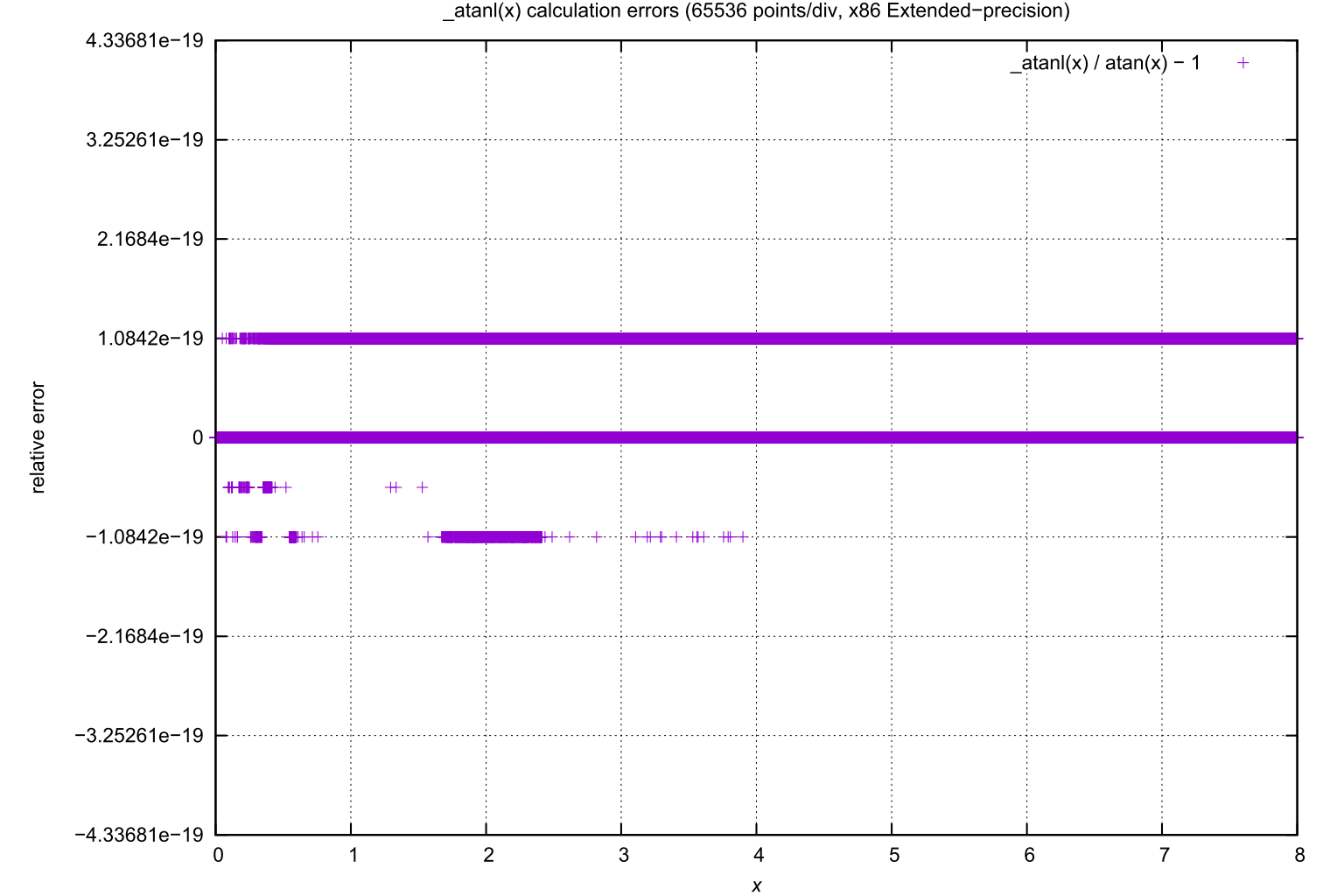

arc tangent calculation errors — **Fig. 1:** Relative error of `_atanl(x)`, shown as `_atanl(x) / atan_ref(x) - 1`

Theoretical Approximation Error of the (14,14) Padé approximation

The theoretical approximation error of the (14,14) Padé approximation attains its maximum value of approximately -6.46×10^-23 at x = √2 - 1.

The plot is calculated in a high-precision (≈40 digits) environment.

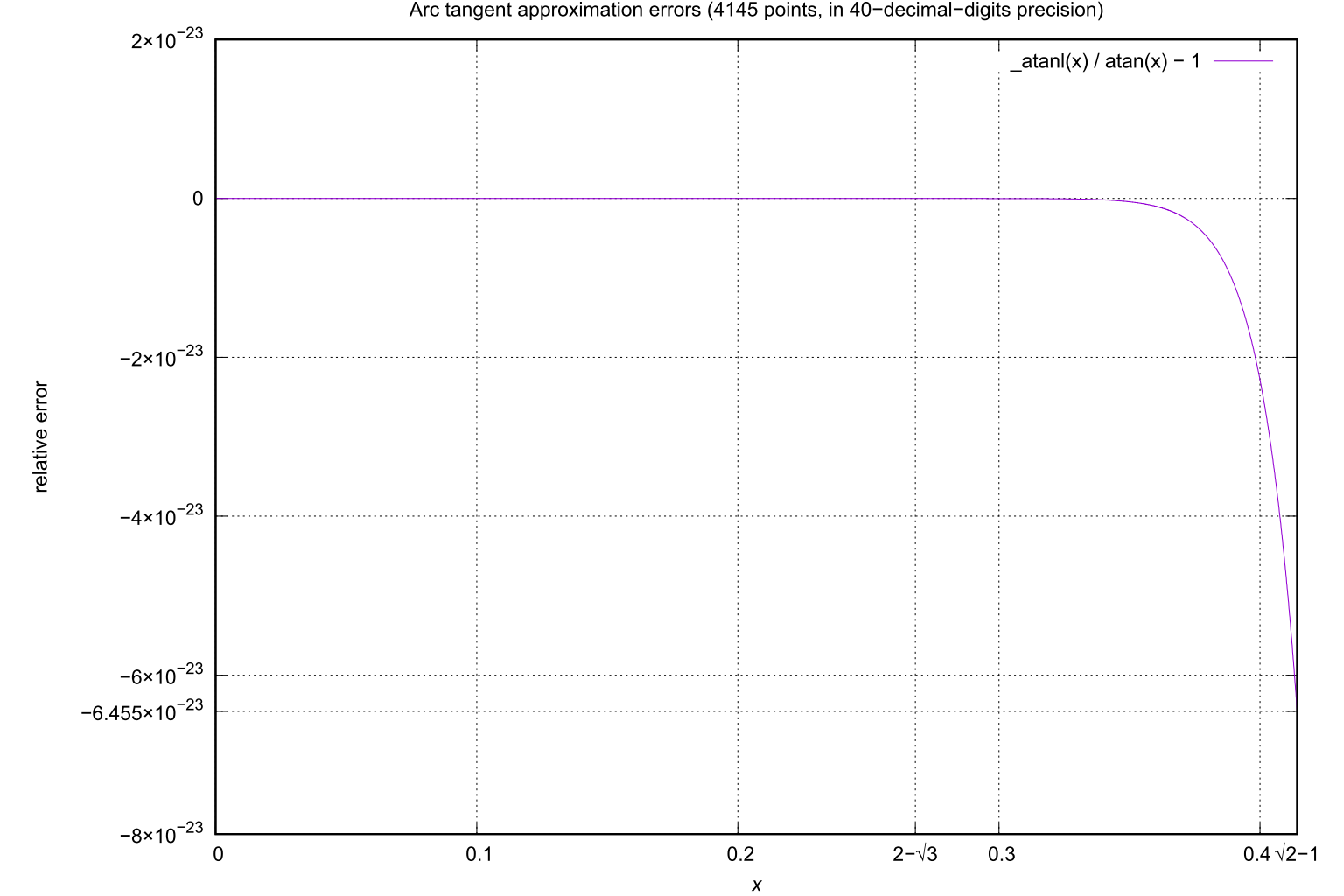

Theoretical arc tangent approximation errors — **Fig. 2:** Theoretical approximation error of the (14,14) Padé approximation used in `_atanl(x)`

Appendix A — IEEE 754 Double-Precision (64-bit)

_atan is a double-precision (64-bit) implementation of the arc-tangent function, derived from _atanl, the extended-precision version. To reduce the approximation error near the upper limit —where the error tends to be large in plain Padé approximations— some coefficients for higher-order terms are adjusted in a minimax-like manner. This makes it possible to use an approximation of order (8,10), instead of the (10,10) order required by a plain Padé approximation for double precision.

With a (10,10) plain Padé approximation, the maximum error is |error| < 3.86×10^-17. In contrast, the (8,10) modified Padé approximation achieves a slightly better bound of |error| < 3.14×10^-17 over the interval x ∈ [0, √2 - 1].

Listing 1: _atan — arc tangent function in C89 (ANSI-C)

/* _atan -- arc tangent function in C89 (ANSI-C), IEEE 754 double-precision
 * _atan Rev.1.21 (Jan. 22, 2026) (c) 2007-2026 Takayuki HOSODA
 * SPDX-License-Identifier: BSD-3-Clause
 */
#include <math.h>
#include <float.h>

#ifndef M_SQRT2
#define M_SQRT2  1.41421356237309504880168872421
#endif
#ifndef M_PI_2
#define M_PI_2   1.57079632679489661923132169164
#endif
#ifndef M_PI_4
#define M_PI_4   0.78539816339744830961566084582
#endif
#ifndef DBL_EPSILON
#define DBL_EPSILON    2.2204460492503131E-16
#endif

double _atan(double x);
/* _atan(x)  computes the principal value of the arc tangent of x. */
double _atan(double x) {
    double q, s, v, w;
    double offset = 0;
    if (x == 0) return x;
    if (x >  (2 / DBL_EPSILON)) return  M_PI_2;
    if (x < -(2 / DBL_EPSILON)) return -M_PI_2;
    if ((v = fabs(x)) >= 1) {
        if (v > M_SQRT2 + 1) {
            offset = -M_PI_2; v = 1 / v;
        } else {
            offset =  M_PI_4; v = (v - 1) / (1 + v);
        }
    } else if (v >= M_SQRT2 - 1) {
            offset = -M_PI_4; v = (1 - v) / (1 + v);
    }  /* Argument reduction into four regions using atan identities */
    s = v * v;
    q =           2401244.6571; w =           2073564.8997;
    q = q * s +  52026974.7295; w = w * s +  32801340.0004;
    q = q * s + 312161850.;     w = w * s + 136306170.;
    q = q * s + 758107350.;     w = w * s + 205633428.;
    q = q * s + 800224425.;     w = w * s + 101846745.;
    q = q * s + 305540235.;     w = w * s;
    /* (8,10) modified Pade approximation for atan(x) / x - 1 */
    v -= w / q * v;  /* atan(x) = x - (atan(x) / x - 1) * x */
    s = v + offset;  /* |err| < 3.2e-17, x in [0, sqrt(2) - 1] */
    return (offset * x >= 0) ? (offset != 0 || x >= 0) ? s : -v : -s;
}

Empirical Error analysis (64-bit)

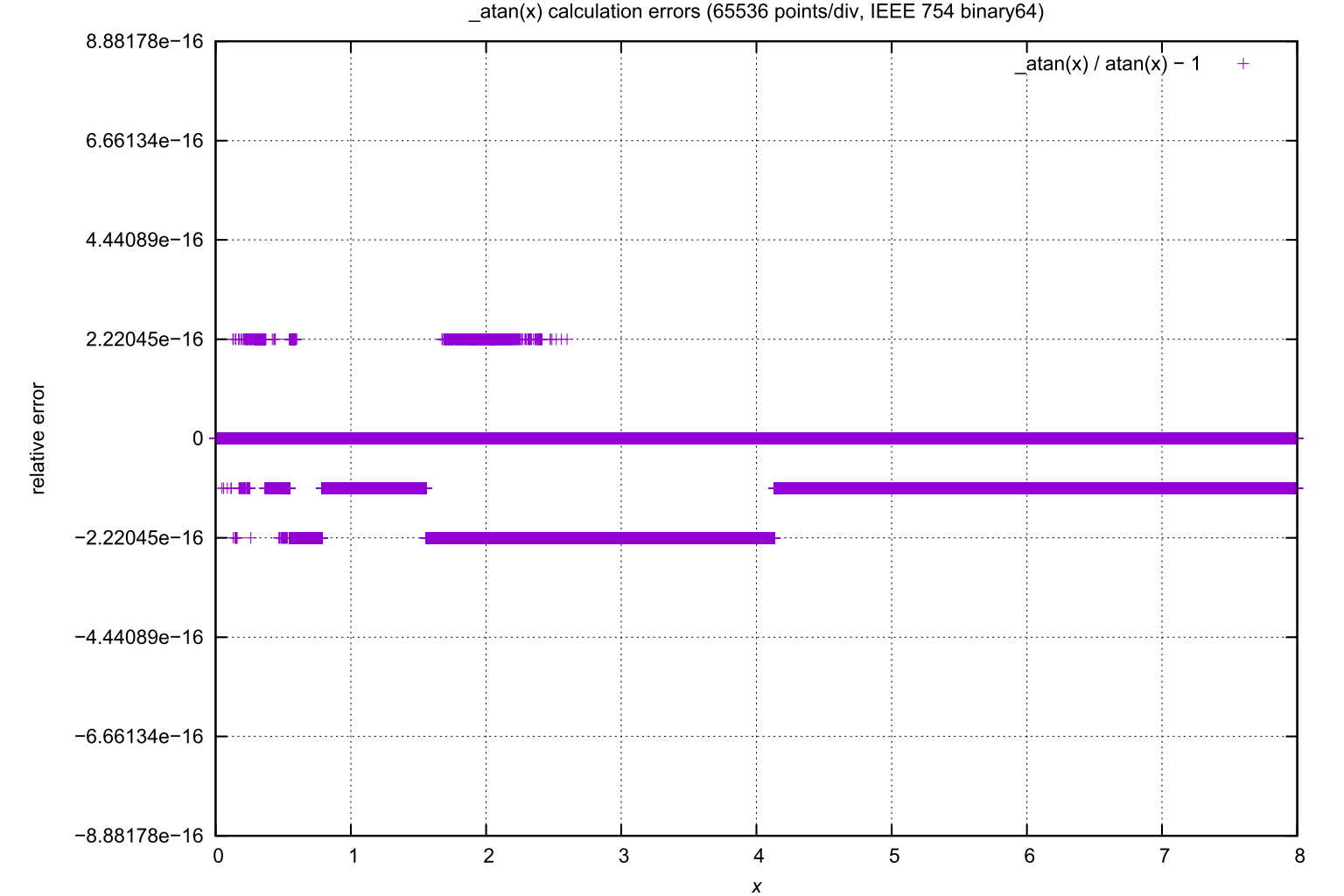

In an empirical evaluation conducted using GCC 7.5, the custom _atan function was tested on 65536 (= 2¹⁶) uniformly spaced points per unit interval for x ∈ [0, 8] in double-precision values. The relative error, computed as _atan(x) / atan_ref(x) - 1 was found to be within ±2.2204460492503131E-16, approximately the machine epsilon for IEEE 754 double precision. Where atan_ref(x) denotes a rounded high-precision reference (≈ 40 digits), not a libm result.

For |x| > 8, argument reduction ensures that approximation errors rapidly diminish.

Theoretical Approximation Error (64-bit)

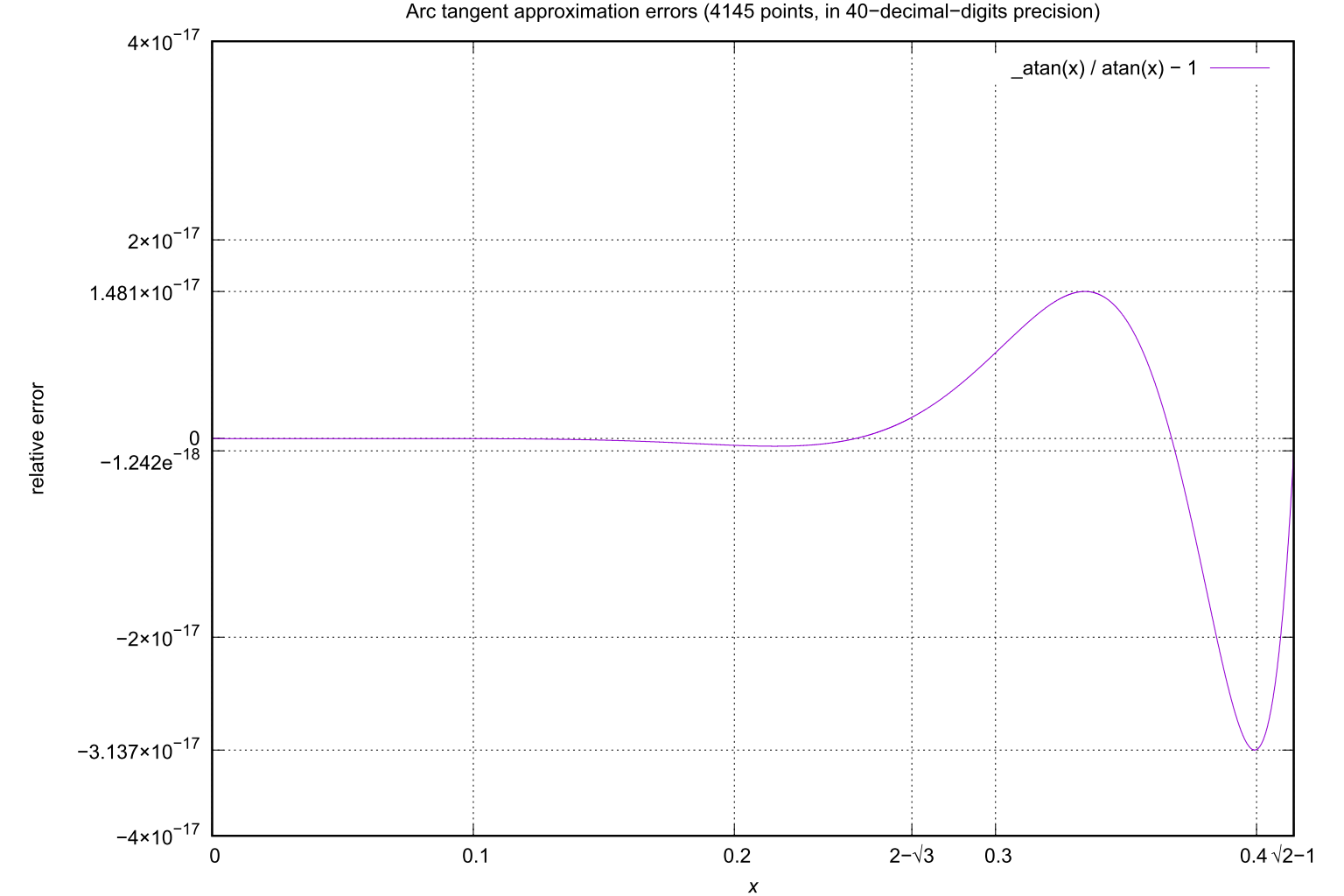

The theoretical approximation error of the (8,10) modified Padé approximation attains its maximum value of approximately -3.14×10^-17 near x ≈ 0.4.

The plot is calculated in a high-precision (≈40 digits) environment.

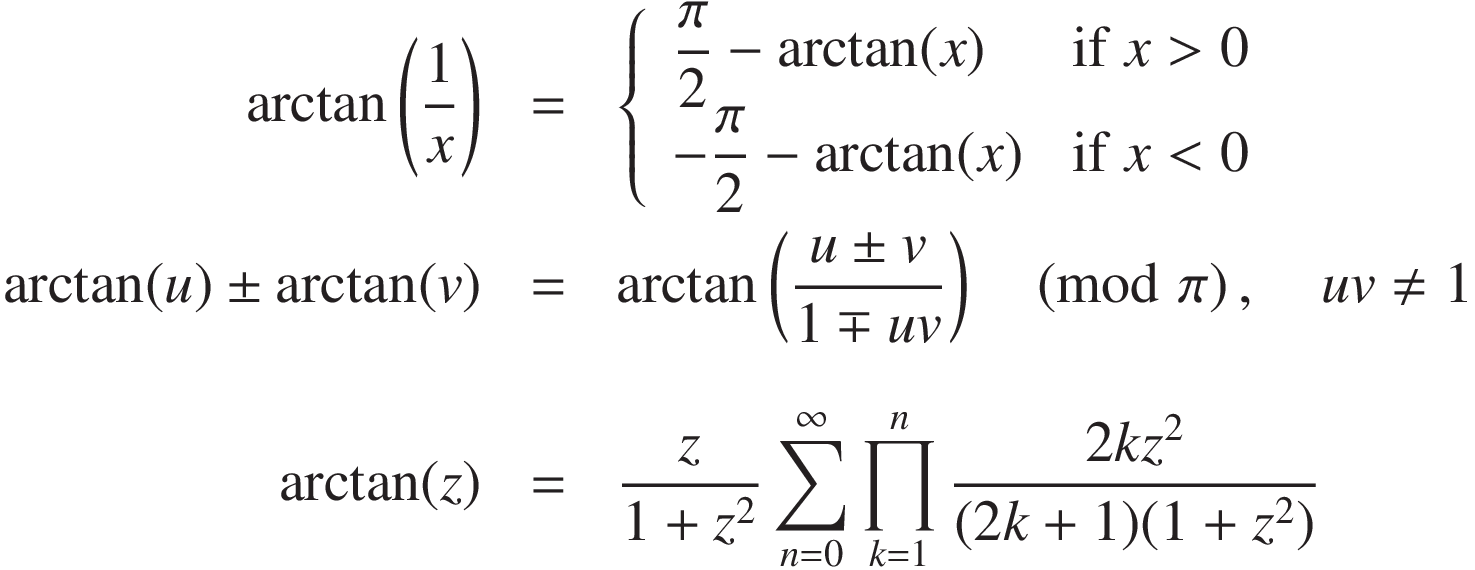

Appendix B — Identities and infinite series of the arctangent function

Epilogue

Over the years, a wide range of Taylor, continued-fraction, and rational approximations have been explored, reflecting the evolution of hardware from early 8-bit CPUs to modern IEEE 754 systems.

References

Although not treated in the present implementation, the derivation of the inverse tangent function can also be formulated via elliptic functions and their inverse mappings. The following references 3–8 are cited for completeness.

Jean-Michel Muller, Elementary Functions: Algorithms and Implementation, Birkhauser, 3rd Edition, 2016.
Okumura, Haruhiko; Shudo, Kazuyuki; Sugiura, Masaki; Tsuchimura, Nobuyuki; Tsuru, Kazuo; Hosoda, Takayuki; Matsui, Yoshimitsu; & Mitsunari, Shigeo. (2003). Java ni yoru Arugorizumu Jiten [Encyclopedia of Algorithms with Java], Gijutsu Hyoron Sha, ISBN4-7741-1729-3 [in Japanese]
N. I. Akhiezer, Elements of the Theory of Elliptic Functions, American Mathematical Society, Providence, RI, 1990. (Original Russian edition, 1970.)
E. T. Whittaker and G. N. Watson, A Course of Modern Analysis, 4th ed., Cambridge University Press, Cambridge, 1927.
F. Bowman, Introduction to Elliptic Functions with Applications, Dover Publications, New York, 1961.
A. Erdélyi et al., Higher Transcendental Functions, Vol. II, McGraw-Hill, New York, 1953.
T. M. Apostol, Elliptic Functions and Modular Forms in Number Theory, Springer, New York, 1990.
R. P. Brent, Fast Multiple-Precision Evaluation of Elementary Functions, Stanford Univ., Stanford, CA, USA, Tech. Rep. STAN-CS-75-515, Aug. 1975.
