TLP293 general purpose optocoupler applications

汎用フォトカプラの中速デジタル信号伝送用出力回路
Sep. 19, 2017
細田隆之

過渡応答特性試験回路

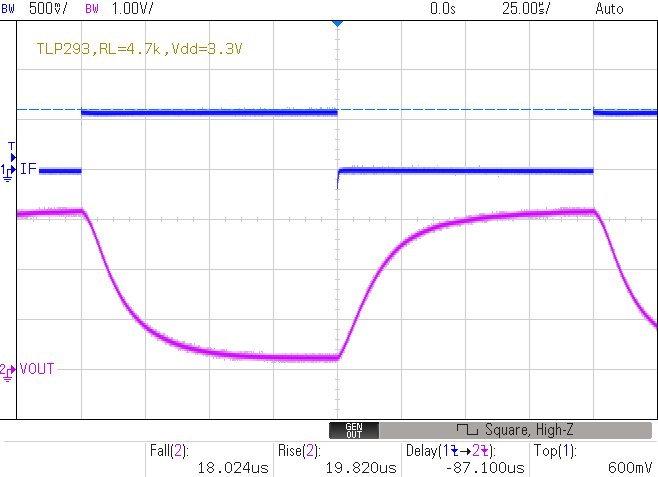

Vdd=3.3V, If=600uA, (If=367uA), 5kHz
Tf=18.024us, Tr=19.820us, (Td=12.9us)

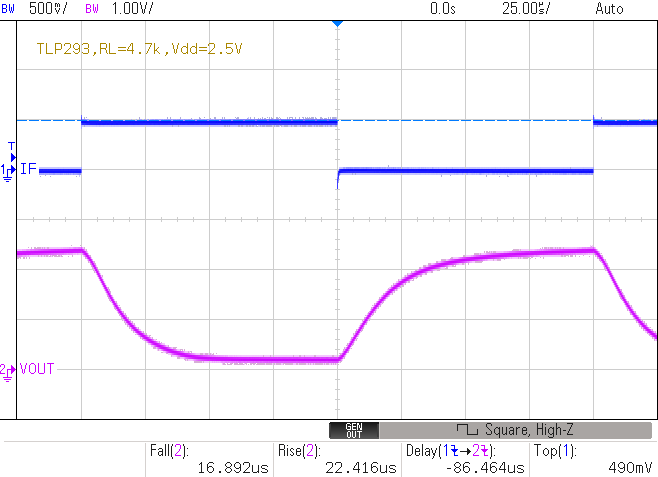

Vdd=2.5V, If=490uA, (If=373uA), 5kHz
Tf=16.892us, Tr=22.416us, (Td=13.536us)

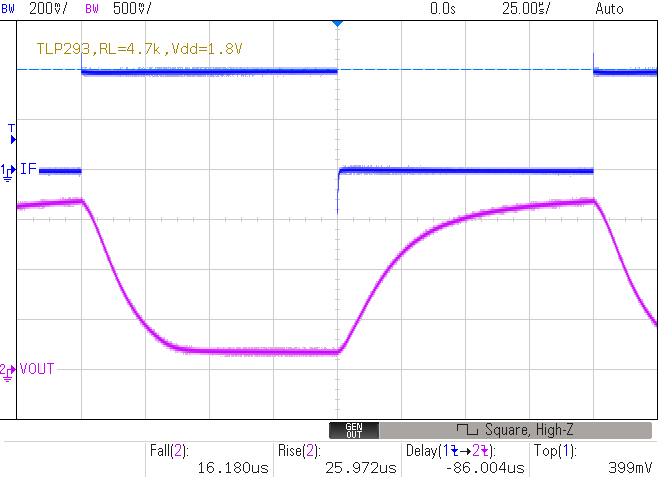

Vdd=1.8V, If=399uA, (If=373uA), 5kHz
Tf=16.180us, Tr=25.972us, (Td=13.996us)

Vdd=1.8V, If=303uA, (If=387uA), 5kHz
Tf=26.55us, Tr=27.58us, (Td=18.976us)

過渡応答特性	試験回路
	Vdd=3.3V, If=600uA, (If=367uA), 5kHz Tf=18.024us, Tr=19.820us, (Td=12.9us)
	Vdd=2.5V, If=490uA, (If=373uA), 5kHz Tf=16.892us, Tr=22.416us, (Td=13.536us)
	Vdd=1.8V, If=399uA, (If=373uA), 5kHz Tf=16.180us, Tr=25.972us, (Td=13.996us)
	Vdd=1.8V, If=303uA, (If=387uA), 5kHz Tf=26.55us, Tr=27.58us, (Td=18.976us)
